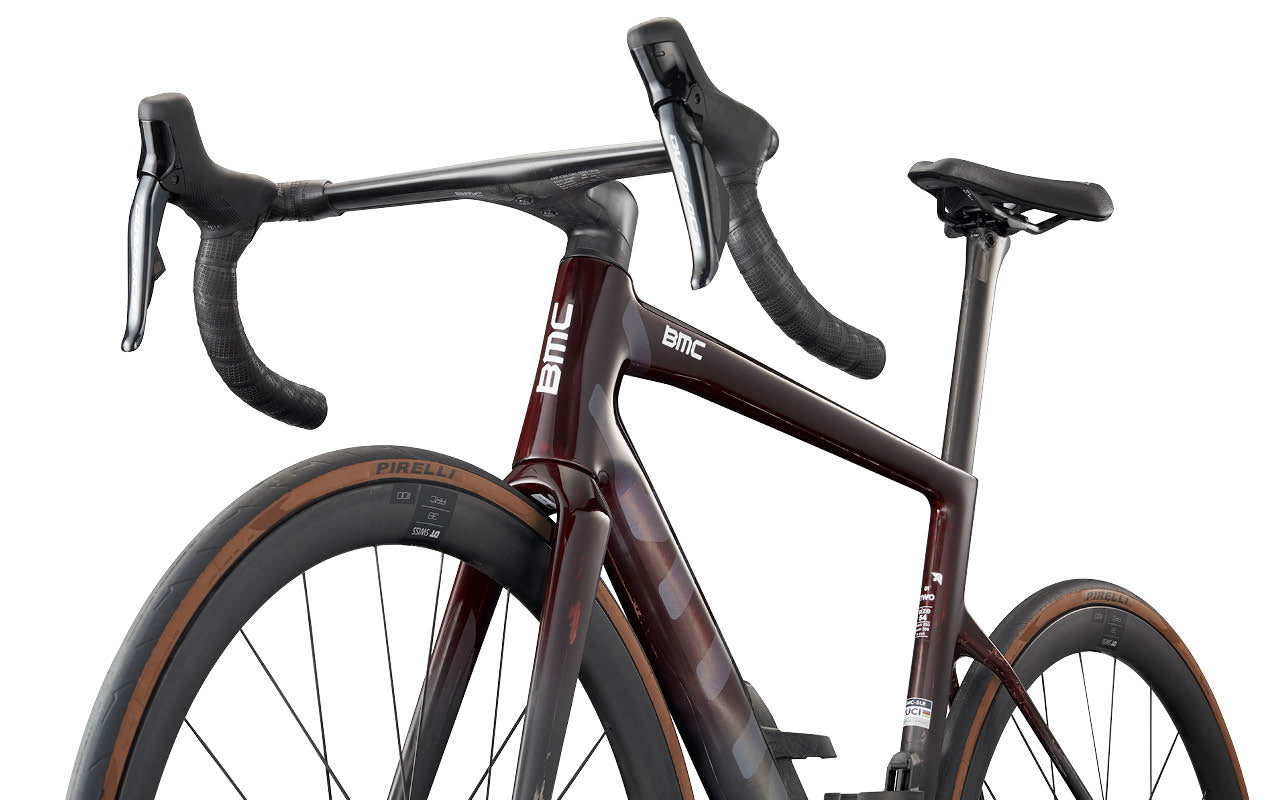

Best-in-class stiffness-to-weight ratio

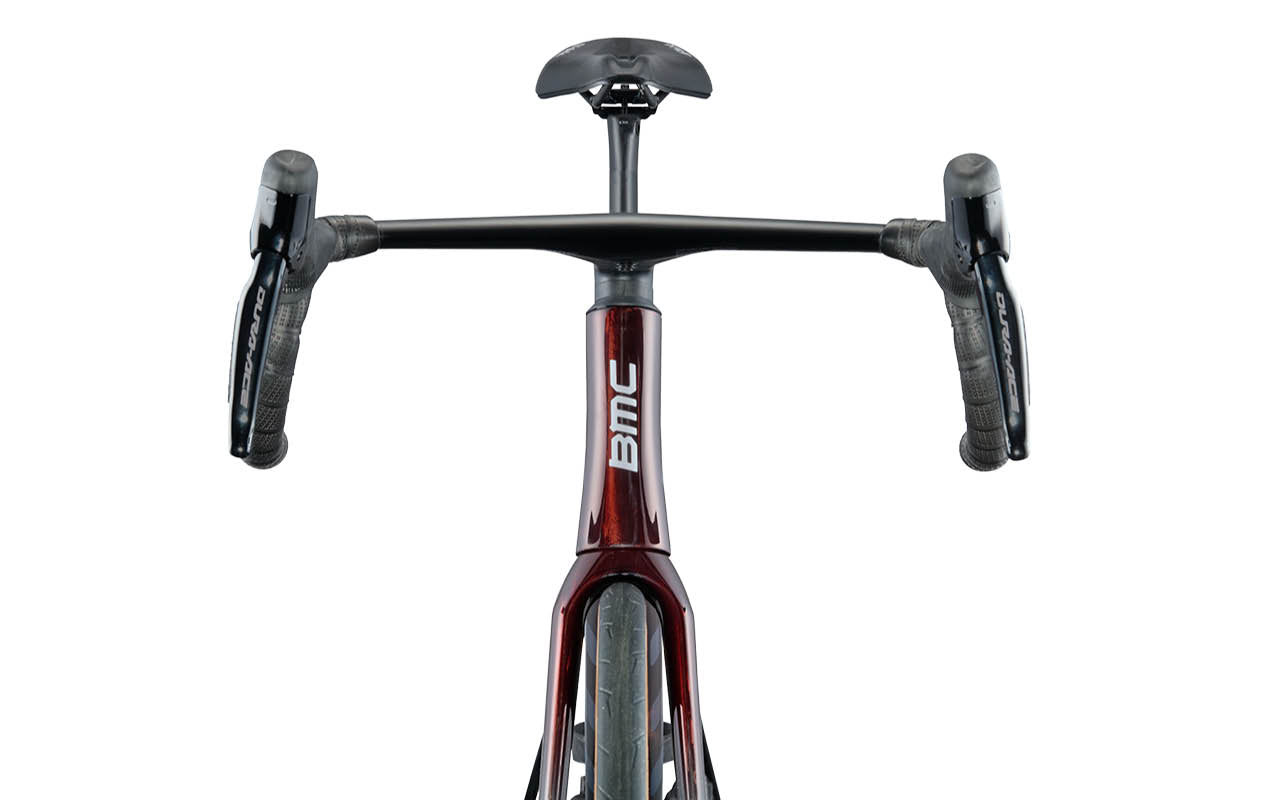

innovationControlled Air Flow
Driven by cutting-edge CFD software and intensive wind tunnel testing, our engineers continue to outdo expectations. This time, it resulted in setting a new benchmark as the most aerodynamically advanced climbing bike in BMC’s history.

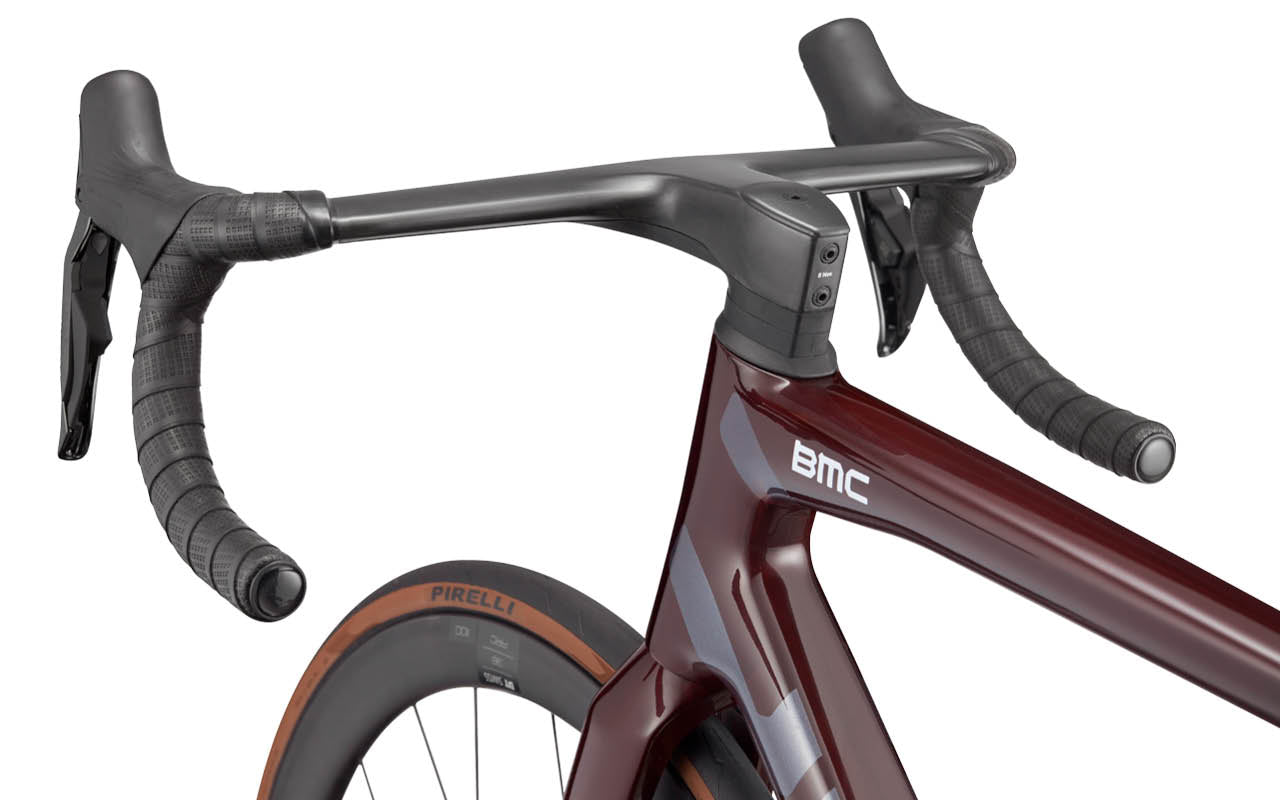

ICS Carbon Aero Cockpit
Developed with Tudor Pro Cycling Team, this ICS Aero Cockpit is by racers, for racers: stiffer, more aero, more comfortable, more tunable, and easier to assemble. And yes, it looks good too.

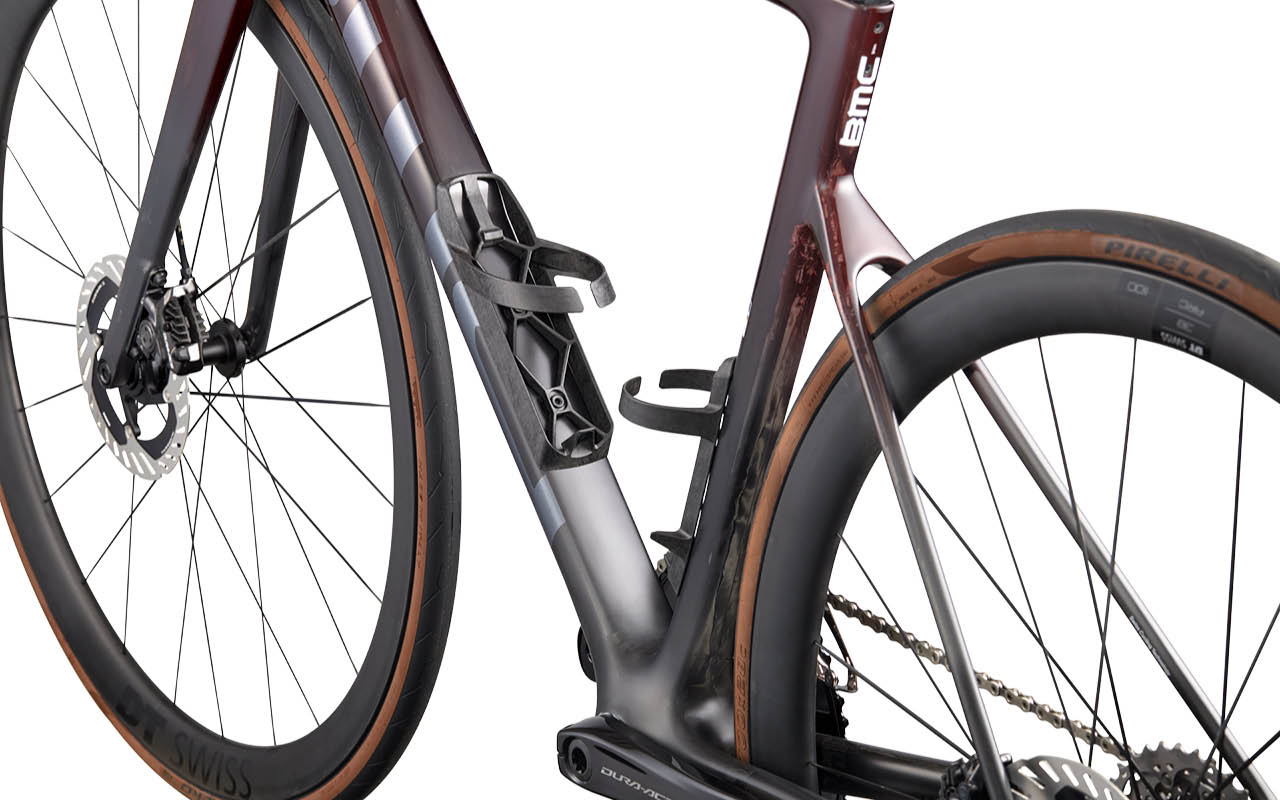

Aerocore Design
A seamlessly integrated pair of superlight and super strong carbon cages, engineered to give optimal airflow over the reshaped downtube and seat tube. Keep the bottles in to significantly reduce drag.
Technical Overview
Frameset
Frame:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61
Cockpit
Handlebar:
ICS Carbon Aero Gen 2 | One-Piece Full Carbon Cockpit | 135mm drop, 81mm reach, 12° flare
Grips:
BMC Tacky 3mm
Seat
Seatpost:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Saddle:
Fizik Vento Argo R1 Lite | Carbon rail | 140mm
Drivetrain
Crankset:
SHIMANO Dura Ace (FC-R9200)
Chainrings:
52-36T
Power Meter:
4iiii Precision Gen3+ Power Meter (Dual Side)
Cassette:
SHIMANO Dura Ace (CS-R9200)
Cassette Size:
11-34T
Chain:
SHIMANO CN-M9100
Front Derailleur:
SHIMANO Dura Ace Di2 (FD-R9250)
Rear Derailleur:
SHIMANO Dura Ace Di2 (RD-R9250)
Shifters:
SHIMANO Dura Ace Di2 (ST-R9270)
Gears:
2 x 12
Bottom Bracket:
SHIMANO Dura Ace Press-Fit Bottom Bracket (SM-BB92-41B)
Brakes
Brake Levers / Calipers:
SHIMANO Dura Ace (BR-R9270)
Rotors:
SHIMANO Dura Ace (RT-CL900)
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
DT Swiss ARC 1100 DICUT | 38mm
Hubs (F/R):
DT Swiss 180 DICUT | Ratchet EXP 36
Tires:
Pirelli P Zero Race RS | Tube type | 28mm
Tubeless Information:
Tubeless Rims | Non-Tubeless Clincher Tire
Accessories
In the Box:
Aerocore Bottle Cages | Computer mount for Garmin, Wahoo and GoPro mount
Additional Information
Tire Clearance:
32mm measured tire
Weight without Pedals:
6.5kg | Size 54 as pictured with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 367 | 377 | 386 | 392 | 401 | 409 |
| Stack | 506 | 530 | 550 | 565 | 584 | 608 |
| Bar Drop | 135 | 135 | 135 | 135 | 135 | 135 |
| Bar Reach | 81 | 81 | 81 | 81 | 81 | 81 |
| Bar Width | 370/420 | 370/420 | 390/440 | 390/440 | 390/440 | 390/440 |
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length | 165 | 167.5 | 170 | 170 | 172.5 | 172.5 |
| Fork Length | 369 | 369 | 369 | 369 | 369 | 369 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube | 108 | 133 | 149 | 165 | 184 | 211 |
| Head Tube Angle | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.3° |
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
| Seat Tube | 422 | 464 | 491 | 509 | 530 | 555 |
| Seatpost Length | 335 | 335 | 385 | 385 | 405 | 405 |
| Seatpost Offset | 0 | 0 | 10 | 10 | 10 | 10 |
| Standover Height | 717 | 752 | 779 | 797 | 817 | 843 |
| Stem Angle | -17° | -17° | -17° | -17° | -17° | -17° |
| Stem Length | 80 | 90 | 90 | 100 | 110 | 110 |
| Top Tube | 515 | 532 | 552 | 562 | 582 | 598 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 968 | 986 | 989 | 1000 | 1015 | 1030 |
